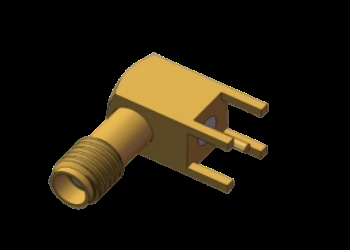

Right Angle SSMA / Mini SMA Female / Jack RF Coax Connector 4 Leg Through Hole Solder PCB Up to 18GHz
|
|
รายละเอียดสินค้า:
การชำระเงิน:
|
รายละเอียดสินค้า
| ชื่อผลิตภัณฑ์: | ขั้วต่อ microstrip หญิง SSMA มุมขวา | แบบอย่าง: | SSMA-KWHD |
|---|---|---|---|
| ช่วงความถี่: | 0.3MHz-18GHz | ความต้านทาน: | 50Ω |
| แรงดันไฟฟ้า: | 250V | ดี.ดับบลิว: | 750V |
| ความต้านทานฉนวน: | ≥5000MΩ | ตัวนำศูนย์: | โลหะผสมทองแดงชุบทองคำ |
| ตัวนำด้านนอก: | โลหะผสมทองแดงชุบทองคำ | วิธีการเมานต์: | 4 ขาแม้ว่าหลุมบัดกรี |
| ฉนวน: | ptfe | ||
| เน้น: | Solder PCB SSMA Connector,Mini SMA RF Coax Connector,Right Angle SSMA RF Coax Connector |
||
Right Angle SSMA / Mini SMA Female RF Coaxial Connector 4 Leg Through Hole Solder PCB Up to 18GHz
Product Specifications
| Items | Value |
|---|---|
| Product Name | Right Angle SSMA Female PCB Mount Connector |
| Model |
SSMA-KWHD
|
| Frequency Range | 0.3MHz-18GHz |
| Impedance | 50Ω |
| Rated Voltage | 250v |
| DWV | 750V |
| Insulation Resistance | ≥5000MΩ |
| Center Conductor | Copper Alloy, Gold Plated |
| Outer Conductor | Copper Alloy, Gold Plated |
| Mount Method | 4 Leg Through Hole Solder |
| Insulators | PTFE |
Product Overview
The SSMA series RF coaxial connectors are compact versions of the SMA interface standard, approximately 70% the size of traditional SMA connectors. SSMA connectors we have structure of right angle flange mount, straight flange mount, right angle through hole PCB solder, straight through hole PCB soder, bulkhead screws connect. These connectors feature:
- Compact size with wide frequency bandwidth
- Superior mechanical and electrical performance
- High reliability in demanding applications
- Threaded standard (10-36UNF-2)
- Characteristic impedance of 50Ω
- Frequency operation up to 30GHz
Interface Dimensions
SSMA / Mini SMA RF Coaxial Connector 4 Leg Through Hole Solder PCB Dimensions
Outline dimensions for the SSMA-KWHD (Unit: mm).
Other Model SSMA 4 Hole Flange Mount RF Coaxial Connector with 4 leg through hole mount
Applications
Ideal for high-precision microwave signal transmission in:
- Microwave communication systems
- Measurement equipment
- Aerospace applications
- Radar systems
- Electronics fields
Packaging & Shipping
Packaging: Each SSMA flange mount connector is carefully packaged in protective cartons to ensure safe transit. Shipping: We use reliable courier services with tracking numbers provided for all shipments.
Shipping: We use reliable courier services with tracking numbers provided for all shipments.Note: For other similar flange mount connector models, please check our catalog. While some models are in stock, all can be produced quickly for the model on catalog.
