| ลักษณะร่างกาย: | ตรง | ชื่อสินค้า: | 2.92 มม. ชนิด K SMK |
|---|---|---|---|
| การชุบ: | ทู่ | ฉนวน: | ไฟเบอร์ |
| Gender: | Male | Material: | Stainless steel |
| สี: | ชุบนิเกิล | Durability: | 500 Cycles |
| เน้น: | 2.92mm RF โคเอชเชียล คอนเนกเตอร์,MF442 สายเคเบิล RF โคเอชเชียล คอนเนกเตอร์,เครื่องเชื่อม RF Coaxial สแตนเลสมิลิเมตร |
||

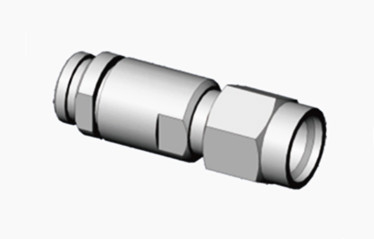

Milimetre Wave Stainless Steel 2.92mm RF Coaxial Connector for MF442 Cable
The 2.92 mm female connectors, designed for precise 50-Ohm coaxial applications, are ideal for a range of RF and microwave uses. These robust connectors are extensively utilized in various test and measurement environments, encompassing cellular to satellite communications, ensuring accurate equipment and cable interconnections. Made from sturdy stainless steel, these connectors are built to endure repeated usage. They incorporate an air dielectric system with a low-loss plastic support for the center conductor.

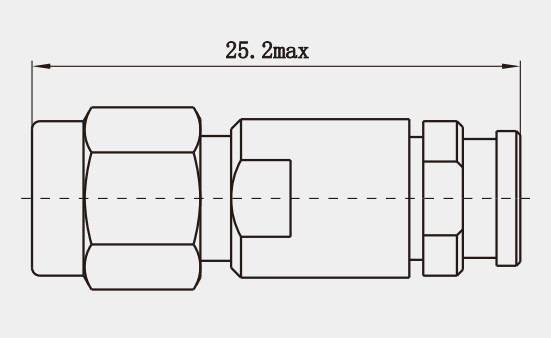

Outline Drawing of Milimetre Wave Stainless Steel 2.92mm RF Coaxial Connector for MF442 Cable
Specification of 2.92mm 50Ohm Stainless Steel Straight RF Coaxial Connector Female :(mm)
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 250VRMS* | |
| Dielectrics Voltage-resistance | 750VRMS* | |
| Insulation Resistance | ≥ 5000 MΩ | |
| Center Resistance | Outer conductor | ≤2.0mΩ |
| Center conductor | ≤3.0mΩ | |
| VSWR | ≤1.05 + 0.005f | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze,gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Temperature | -55℃ ~ +125℃ | |
Features:
1. Miniaturized design: Small size and light weight, making it easy to use in space-constrained environments.
2. Precision machining: Ensures accurate dimensions of the connector, achieving good mechanical and electrical performance.
3. Environmental resistance: Suitable for a variety of harsh environmental conditions, including temperature changes, humidity, vibration, and shock.
4. Ease of operation: Typically designed with quick plug-and-unplug features, facilitating easy connection and disconnection by the user.
Application :
1. Scientific Research: In physics, astronomy, and other scientific research, especially in experiments with millimeter and submillimeter waves.
2. Medical Imaging Technologies: May be used in some advanced medical imaging devices such as microwave imaging.
3. Meteorological Monitoring: Used in meteorological radars and other meteorological monitoring equipment.
4. Data Communications: High-speed data communications and data center interconnects, especially in scenarios requiring bulk data transfer.
Other 2.92mm Male Female RF Connector:
|
Part Number
|
Description
|
|
K-KFD4
|
2.92mm Type K Female RF Coaxial Connector
|
|
K-KFD28G
|
Stainless steel 2.92mm Type K Female RF Coaxial Connector
|
|
K-KFD8
|
2.92mm Type K Female RF Coaxial Connector
|
|
K-JFD9G |
Stainless steel 2.92mm Type K Male RF Coaxial Connector
|
1.
2.
3.
4.
NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your details.
