SMK Series Satcom Passivated 2.92mm RF Connector

    RF Coaxial Connector SMK Series Female Straight 2 hole flange 2.92mm

K type is also called 2.92 type connector, this series of products is a commonly used millimeter wave connectors, with a frequency of up to 40 GHz, can be used with SMA series and 3.5 series products are interchangeable and adopt air interface.With small size, light weight, high frequency of use, reliable connection, etc.

Features:

• It can mate and interchange with SMA series, K series ,2.4mm,3.5mm connectors.

• Superior electrical performance up to 40 GHz

• It has the advantages of small volume, light weight, high use frequency, reliable connect.

• Great for applications that require high frequency transmission

• Female contacts have unique three-slot construction

• An air dielectric with a loss-loss plastic center conductor support.

• It has the high use frequency, reliable connect.

Specification:

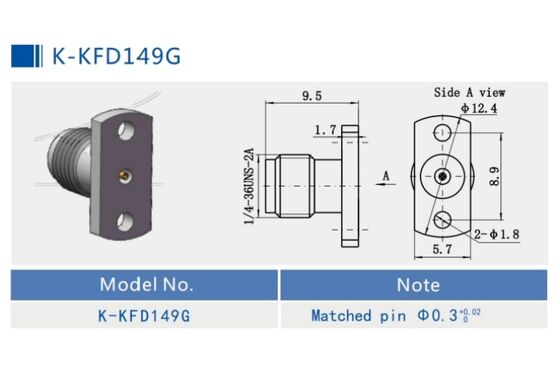

Other 2.92mm Male Female RF Connector

2.

3.

4.

Application:
